WC67Y-125X3200

Press Brake Machine WC67Y-125X3200

Type: Horizontal

Warranty:  13 months

Voltage: As customers’ requirement

Color: As customers’ requirement

After-sale service: Available

Brand Name: WMTCNC

    Leave us your contact
    We will reply you within 2 hours.







    Description

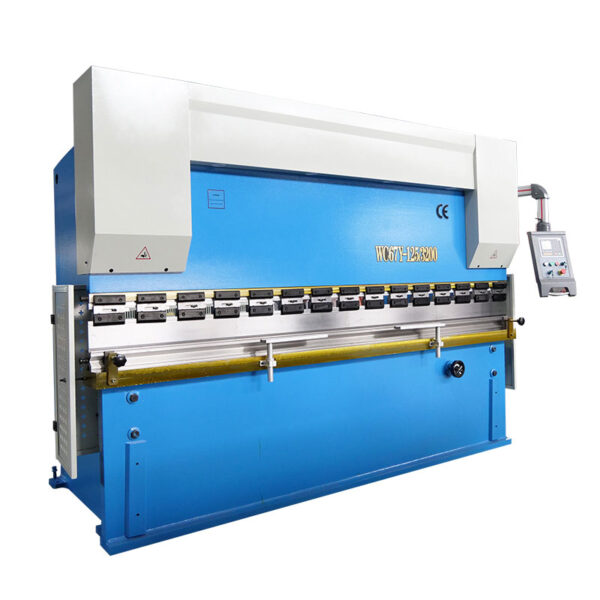

    WMTCNC metal press WC67Y-125X3200 consists of a support stand, working table, synchronous mechanism, and sheet metal stop system. It is a kind of conventional hydraulic press brake machine. It is able to bend sheet metal with Max. length 3200mm, another special size is available according to actual needs.

    Welded steel plate of the whole machine to ensure rigidity of press brakes, vibration is adopted to remove inner stress. We have good equipment to machine parts of hydraulic press brake to make sure good accuracy of components, to realize good precision of bending works.

    Specification

    Specification  Nominal   PressureLength of working tableThroat dephtsRam     StockNumber of stroke Motor Power
    KNmmmmmmm/min-1KW
    WC67Y/K-40/22004002200200100114
    WC67Y/K-40/25004002500200100114
    WC67Y/K-50/25005002500200100115.5
    WC67Y/K-63/25006302500250100105.5
    WC67Y/K-63/32006303200250100107.5
    WC67Y/K-80/2500800250032015087.5
    WC67Y/K-80/3200800320032015087.5
    WC67Y/K-100/25001000250032015087.5
    WC67Y/K-100/32001000320032015087.5
    WC67Y/K-100/40001000400040015087.5
    WC67Y/K-125/25001250250032015087.5
    WC67Y/K-125/32001250320032015087.5
    WC67Y/K-125/40001250400040015087.5
    WC67Y/K-160/320016003200400180811
    WC67Y/K-160/400016004000400180811
    WC67Y/K-160/500016005000400180711
    WC67Y/K-160/600016006000400200715

    Main Features

    • Totally European design, streamlined looking, Monoblock, Welded steel frame rigid to deflection moment and high tensile with ST44 A1 material.

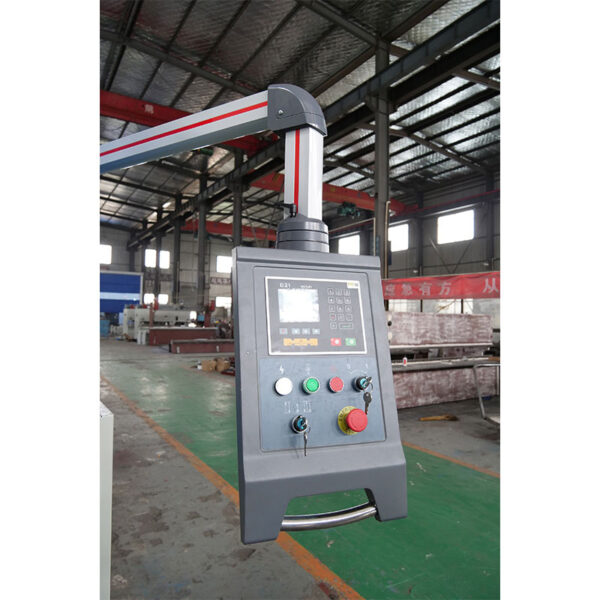

    • Metal press is Equipped with the Estun user-friendly interface, the E21 provides all main press brake functionality.
    • Automatic tonnage and stroke adjustment for bending angles.
    • Perfect bending results with easy angle input and operation of machine.
