Sheet Metal Guillotine QC11Y-10X3200

Type: Horizontal

Warranty:  13 months

Voltage: As customers’ requirement

Color: As customers’ requirement

After-sale service: Available

Brand Name: WMTCNC

    Leave us your contact
    We will reply you within 2 hours.







    Category:

    Description

    1)Sheet metal guillotine QC11Y-10X3200 with European design, streamlined looking.

    2)Remove rust with sand-blast and coated with anti-rust paint.

    3)Frames, assembly surfaces and connection holes are machined after the welding process, up to 60′ in a single pass.

    Specification

    Specification
    Unit
    QC11Y-10X3200
    Cutting thickness
    mm
    10
    Cutting width
    mm
    3200
    Tensile strength of material
    N/ mm2
    ≤450
    Shearing angle
    1° – 2.5°
    Time of stroke
    /min
    13-24
    Height of worktable
    mm
    850
    Thickness of uprights
    mm
    45
    Distance between uprights
    mm
    3430
    Throat depth
    mm
    150
    Backguage rang
    mm
    10 – 1000
    Motor power
    KW
    22
    Gear pump
    L
    50
    Weight
    KG
    8500
    Dimension
    mm
    3850x2100x2200
    Dimension
    mm
    2200x1750x1900

    Main Features

    1. Hydraulic system of sheet metal guillotine
    1)Adopt integrated hydraulic control system, more reliable and easy for maintenance. Hydraulic system is from Bosch -Rexroth, Germany; 2)All pipes, flange and joint with vibrations proof and leakage proof design and setting;
    3) All seals in cylinder is NOK from Japan, the most famous brand, good quality and high performance;
    4) Overload overflow protection is outfitted to hydraulic system, which can assure no leakage, and the oil level can be read or seen directly;
    5) The hydraulic system is made in compliance with current regulations.

    2. Electrical system
    1)Electrical cabinet under the standard of IP55, electrical under international CE Standard, safe and reliable, strong anti interference capability;
    2) Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate;
    3) Front Side cover, back light safety guards, foot pedal conforming to CE regulation.

    3. Blade Adjust and Cutting Precision
    1) Shearing angle is variable, which can reduce the shearing deformation of sheet metal and can shear much thicker sheet metal;
    2) Adopt handwheel to rapidly and accurately adjust the blade clearance, shearing in sections, shadow-line cutting;
    3) The rectangular monoblock blades featuring long life with 4 cutting edges, quality high-carbon high-chrome blades SKD11 quality.

    4. Backgauge
    1)Back gauge instal on the blade rest, along with the rest on the up and down movement, it’s driven by a servo motor through the DAC360s CNC system can control the plate before and after the position adjustment, behind;
    2)The adjusting range of the backstop material is 10-800mm, which can be adjusted freely in this range. And positioning tolerance ±0.10 mm.

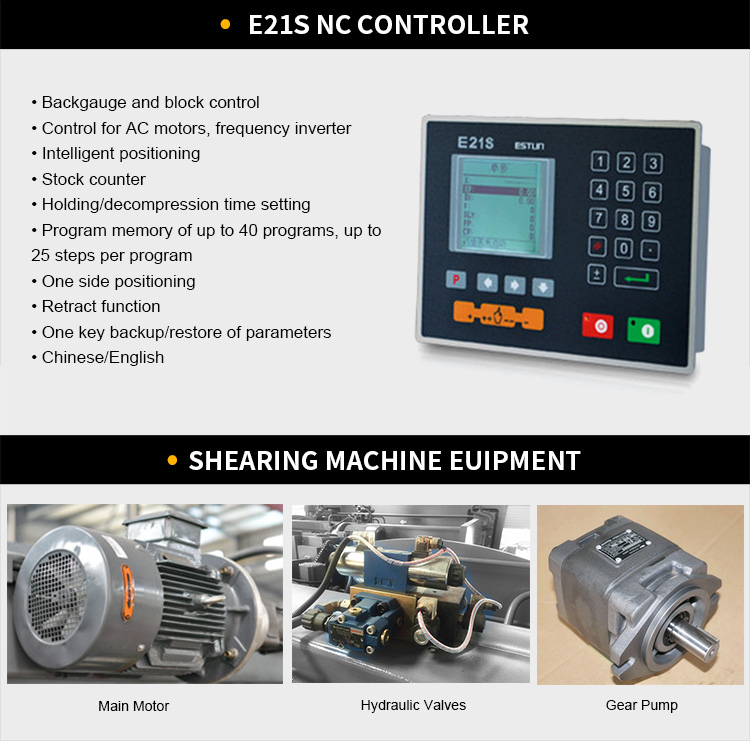

    5. E21s NC Controller
    •  Backgauge and block control
    • Control for AC motors, frequency inverter
    • Intelligent positioning
    • Stock counter
    • Holding/decompression time setting
    • Program memory of up to 40 programs, up to 25 steps per program
    • One side positioning
    • Retract function
    • One key backup/restore of parameters
    • Chinese/English
