Description

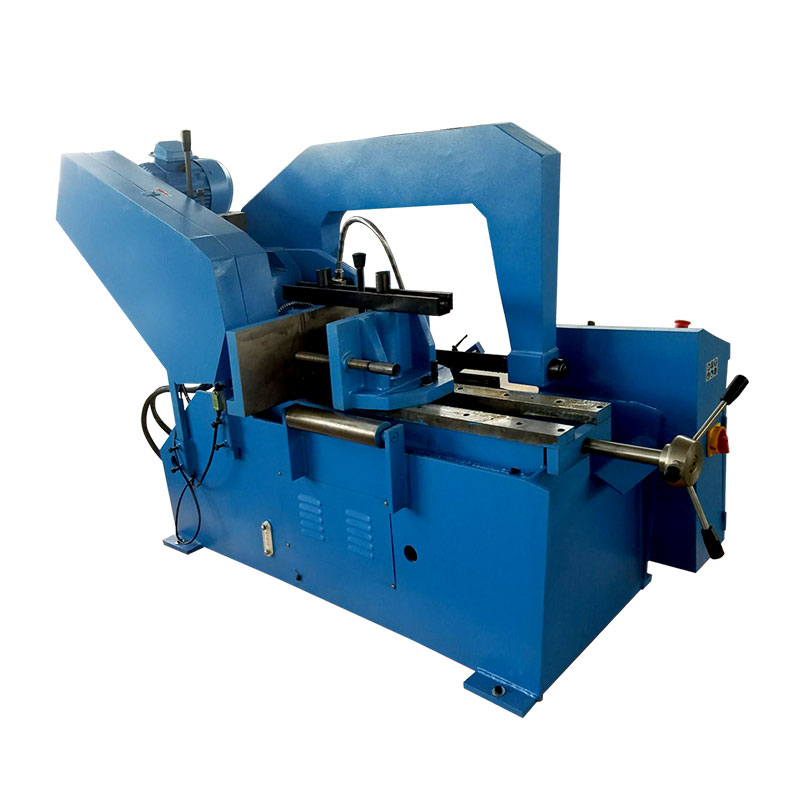

Hacksaw machine HS7150 is the high precision automatic horizontal Hydraulic Hacksaw Machine for universal use. This hydraulic hack saw machine is ideal for cutting tubes, solid iron materials with user-friendly and safe operating.
Specification
Specification | HS7150 | |
Capacity | Round bar | 500mm |
Square bar | 400x400mm | |
Sawing angle | 45 degree | |
Sawing speed | 39,60,70 | |
Blade size | 750x63x2.5mm | |
Main motor | 3.0KW | |
Coolant pump motor | 0.04KW, 2 Poles | |
Saw blade raqid down | 0.25KW, 4 Poles | |
Packing size | 2440x1190x1760mm | |
N.W. / G.W. | 1450/1700kg |
Main Features
- .Automatic cutting process
- With clamping feeding device
- With safety protection device
- It has different speeds and wide cutting scope.
- Hydraulic transmission, simple running, easy upkeep.
Machine details
