GH4220A

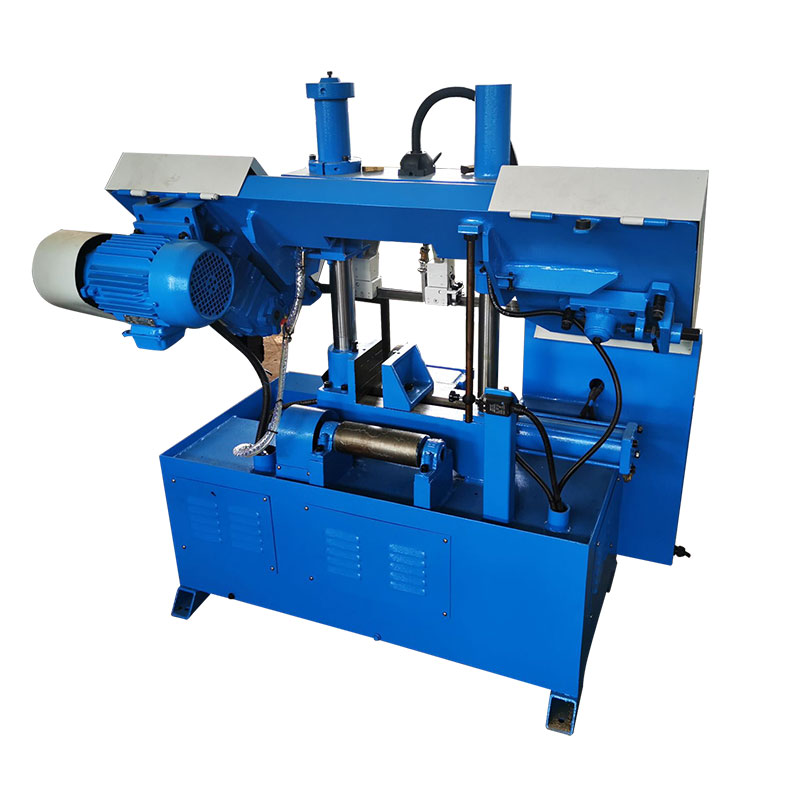

Double Column Band Saw GH4220A

Type: Horizontal

Warranty:  13 months

Voltage: As customers’ requirement

Color: As customers’ requirement

After-sale service: Available

Brand Name: WMTCNC

    Leave us your contact
    We will reply you within 2 hours.







    Description

    Double Column Band Saw Machine GH4220A is the high precision automatic horizontal Hydraulic Saw Machine for universal use. This saw machine is ideal for cutting tubes, solid iron materials with user-friendly and safe operating.

    Specification

    SpecificationGH4220A
    Cutting range (round)Φ200mm
    Cutting range (rectangular)200X200mm
    Blade size2800X27X0.9mm
    Blade feed typehydraulic stepless
    Blade tension typemanual
    Blade linear speed27/45/69m/min
    Main drive structureworm wheel
    Workpiece clamp typehydraulic
    Workpiece feed typemanual
    Main motor power1.5kw
    Hydraulic motor power0.55kw
    Coolant pump motor power0.04kw
    Machine dimensions1400X900X1100mm
    N.W.260kgs

    Main Features

    • .Frame made of premium cast-iron with dual-column guides – superior rigidity for a special sales price
    • The torsion-proof saw frame features an infinitely adjustable feed
    • Automatic saw blade stop and homing of the saw frame at the end of a cut
    • Rigid saw blade guide, adjustable according to workpiece size
    • Including hydraulic workpiece clamping with clamping pressure control
    • Hand-wheel for support roll movement simplifies exact positioning of the workpiece under the saw blade
